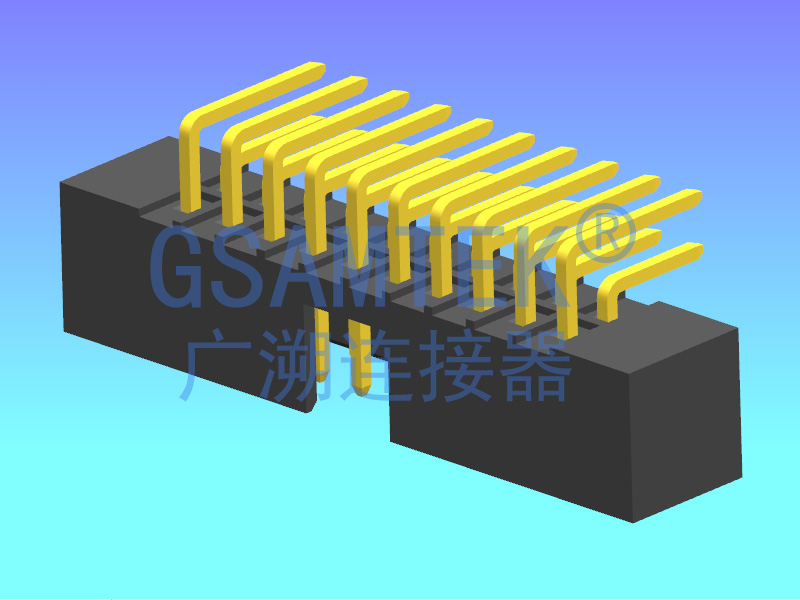

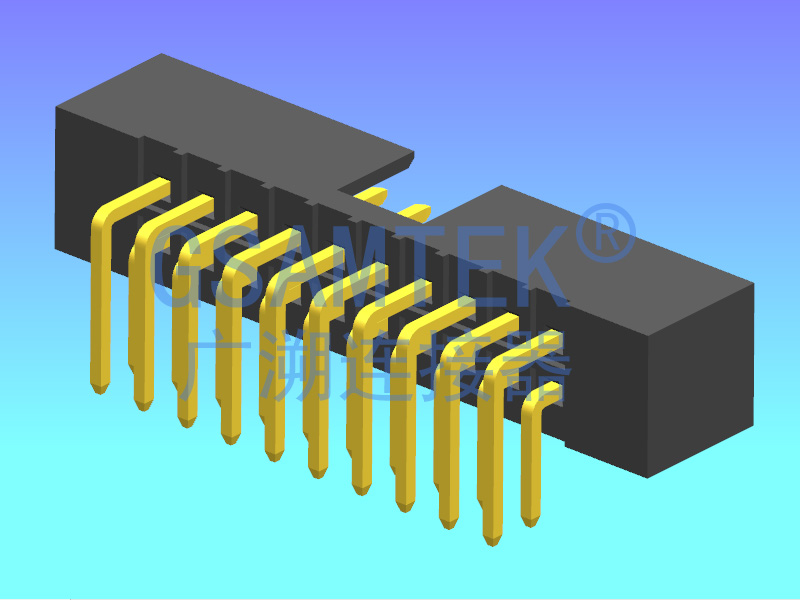

双排90度简牛 PH2.0 H5.7 W5.5
产品分类:间距2.0mm
PH2.0简牛:
价格:¥0.01~
简介:
PIN 数:2*3P~2x25P
塑胶高 H:5.7mm
排 数:双排、
折弯类型:90度
材 质:PA6T/PA9T/LCP
四 方 针:0.50mm
详细介绍
![](/image/pdf.png)
![](/image/dowm.png)
Material:
Contact Material: Brass
Contact plating: Au or Sn Over30-50u" Ni
Insulator Material: Black Polyester UL94V-0
Standard: PA6T/PA9T/LCP+30%G.F
Electrical:
Current rating: 2.0Amps/contact max.
Contact resistance: ≤20mΩ/contact
Insulation resistance: ≥1000MΩ at V=100V
Withstanding Voltage: 500V AC/minute
Mechanical:
Operaing temperature: -40°C to +105°C
Wave soldering temperature: 255±5°C,10s
