产品中心

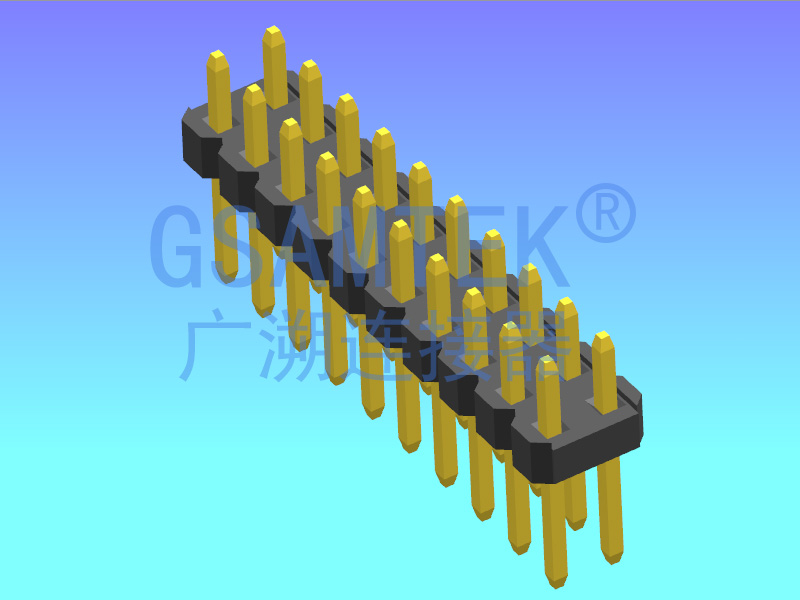

双排180度排针 PH2.54 H2.0 W5.0
产品分类：间距2.54mm
PH2.54排针：
PIN 数：2*2P~2x40P
塑胶高 H：1.0/1.5/2.0/2.5mm
排 数：双排、
折弯类型：180度/90度/SMT
材 质：PBT/PA6T/PA9T/LCP
四 方 针：0.64mm
详细介绍
&
Material:
Contact Material: Brass
Contact plating: Au or Sn Over30-50u" Ni
Insulator Material: Black Polyester UL94V-0
Standard: PA6T/PA9T/LCP+30%G.F
Electrical:
Current rating: 3.0Amps/contact max.
Contact resistance: ≤20mΩ/contact
Insulation resistance: ≥1000MΩ at V=100V
Withstanding Voltage: 1000V AC/minute
