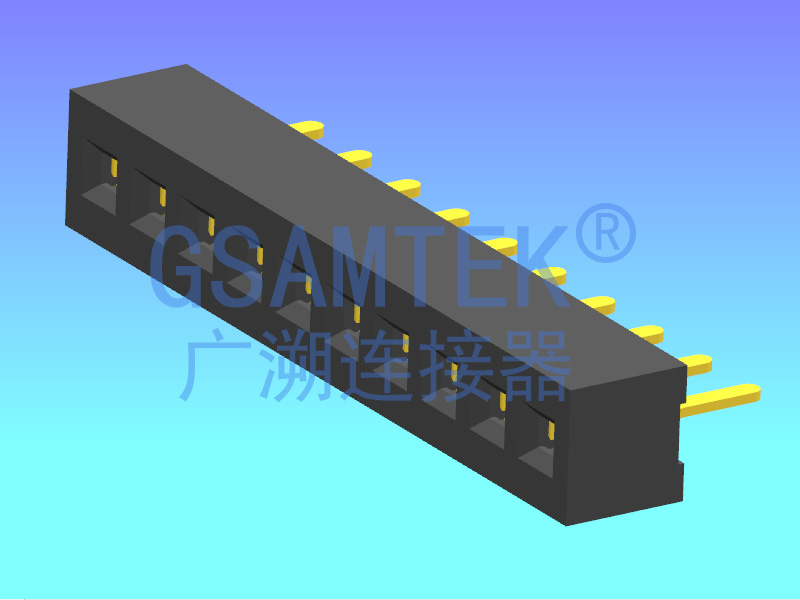

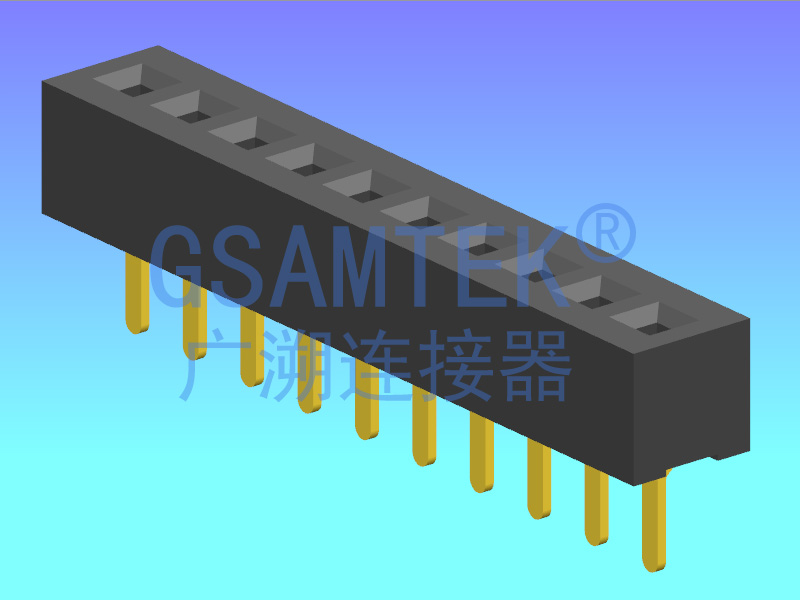

单排180度排母 PH1.27 H2.0 U型 W2.1/1.8
产品分类:间距1.27mm
PH1.27排母:
价格:¥0.01~
简介:
PIN 数:1*2P~1x50P
塑胶高 H:2.0mm
排 数:单排、
折弯类型:180度
材 质:PA6T/PA9T/LCP
端子形状:U型
详细介绍
![](/image/pdf.png)
![](/image/dowm.png)
Material:
Contact Material: Phosphor Bronze
Contact plating: Au or Sn Over30-50u" Ni
Insulator Material: Black Polyester UL94V-0
Standard: PA6T/PA9T/LCP+30%G.F
Electrical:
Current rating: 1.0Amps/contact max.
Contact resistance: ≤20mΩ/contact
Insulation resistance: ≥500MΩ at V=100V
Withstanding Voltage: 300V AC/minute
Mechanical:
Operaing temperature: -40°C to +105°C
Reflow soldering temperature: 260±5°C,10s
