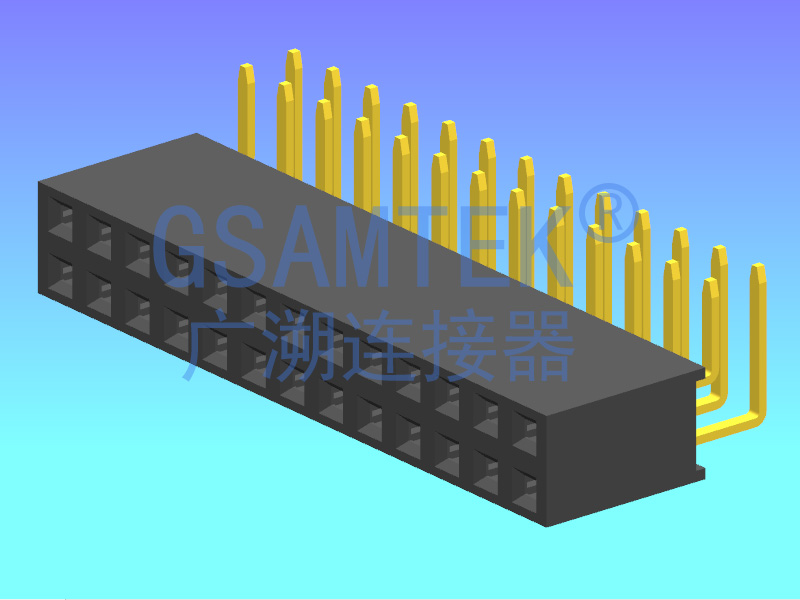

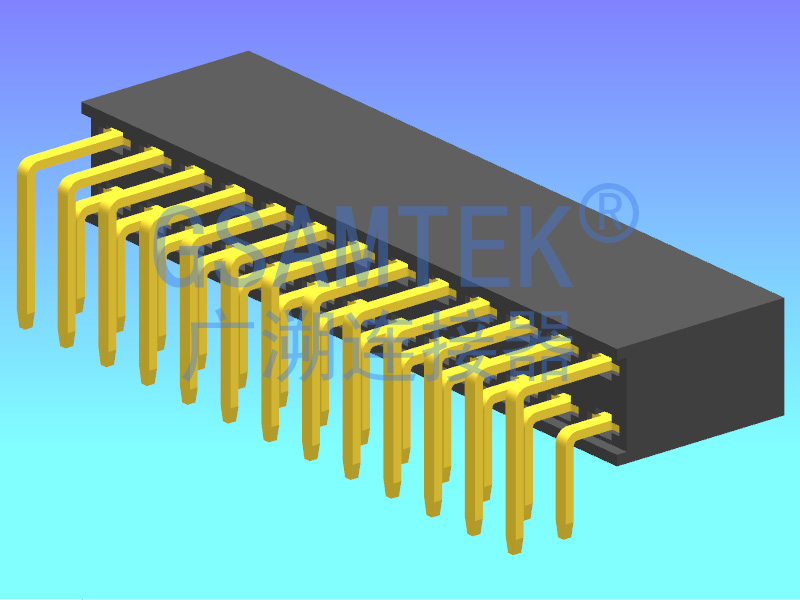

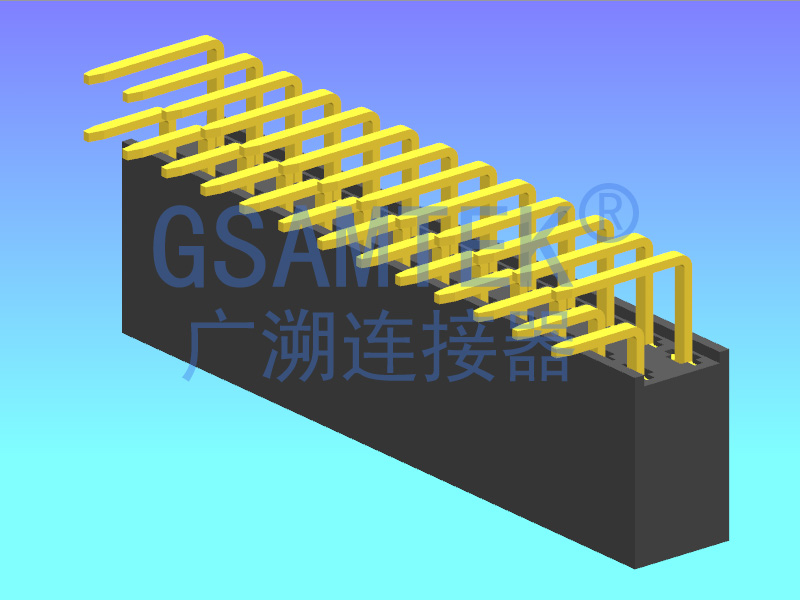

双排90度排母 PH2.54 H8.5 Y型
产品分类:间距2.54mm
PH2.54排母:
价格:¥0.01~
简介:
PIN 数:2*2P~2x40P
塑胶高 H:8.5mm
排 数:双排、
折弯类型:90度
材 质:PBT/PA6T/PA9T/LCP
端子形状:Y型
详细介绍
![](/image/pdf.png)
![](/image/dowm.png)
Material:
Contact Material: C2680
Contact plating: Au or Sn Over30-50u" Ni
Insulator Material: Black Polyester UL94V-0
Standard: PBT/PA6T/PA9T/LCP+30%G.F
Electrical:
Current rating: 3.0Amps/contact max.
Contact resistance: ≤20mΩ/contact
Insulation resistance: ≥1000MΩ at V=100V
Withstanding Voltage: 1000V AC/minute
Mechanical:
Operaing temperature: -40°C to +105°C
Wave soldering temperature: 255±5°C,10s
