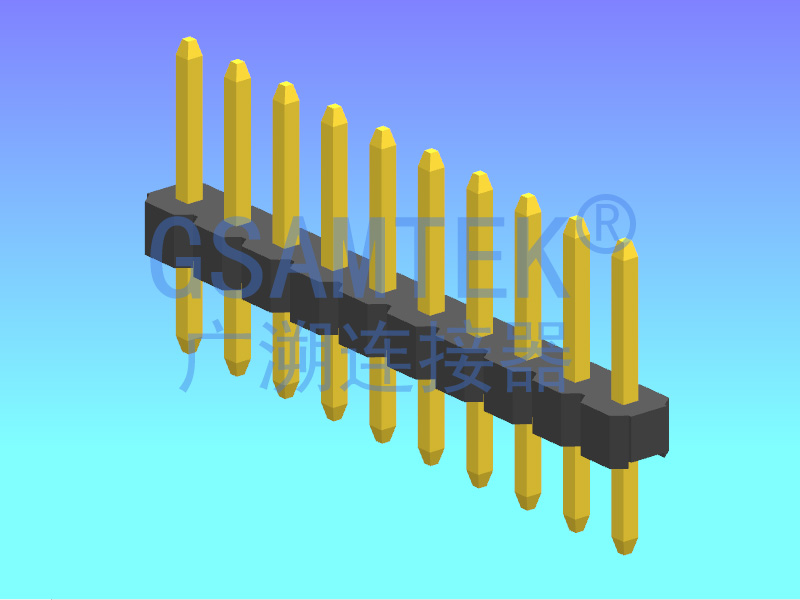

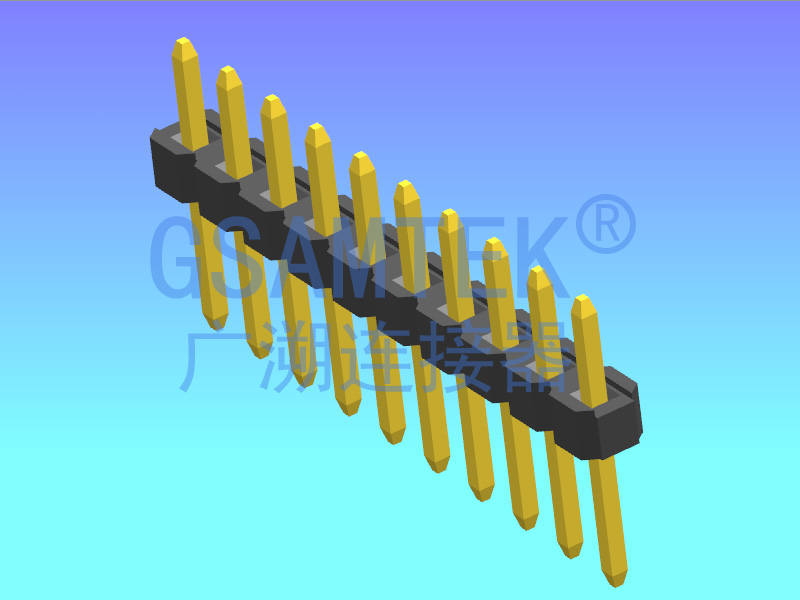

单排180度排针PH2.00 H1.5 W2.0
产品分类:间距2.0mm
PH2.00排针:
PIN 数:1*2P~1x40P
塑胶高 H:1.0/1.5/2.0mm
排 数:单排、
折弯类型:180度/90度/SMT
材 质:PA6T/PA9T/LCP
四 方 针:0.50mm
详细介绍
![](/image/pdf.png)
![](/image/dowm.png)
Material:
Contact Material: Brass
Contact plating: Au or Sn Over30-50u" Ni
Insulator Material: Black Polyester UL94V-0
Standard: PA6T/PA9T/LCP+30%G.F
Electrical:
Current rating: 2.0Amps/contact max.
Contact resistance: ≤20mΩ/contact
Insulation resistance: ≥1000MΩ at V=100V
Withstanding Voltage: 500V AC/minute
Mechanical:
Operaing temperature: -40°C to +105°C
Reflow soldering temperature: 260±5°C,10s
