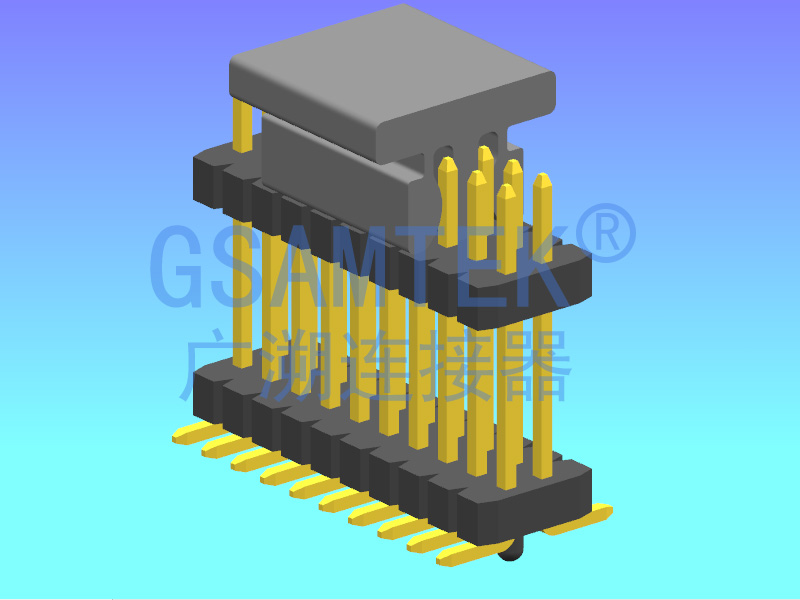

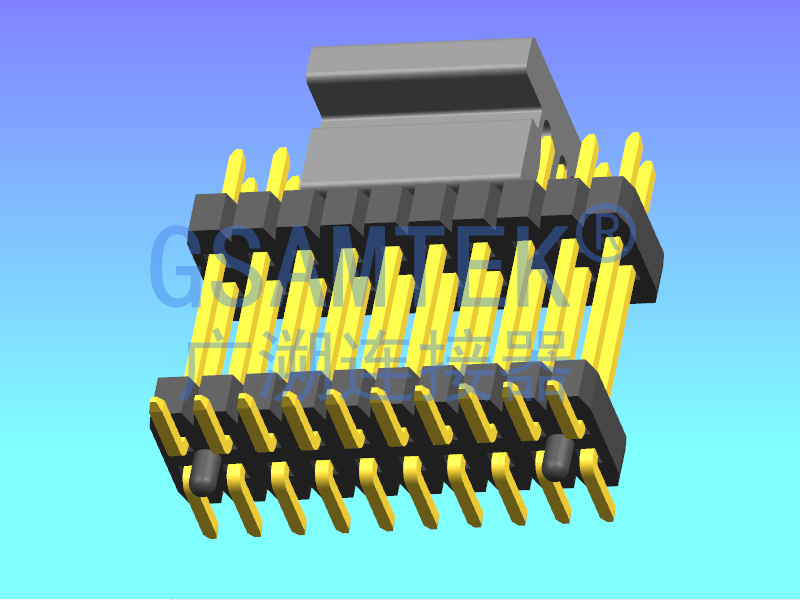

双排双塑SMT排针PH1.0 H1.0 W3.17
产品分类:间距1.00mm
PH1.00排针:
PIN 数:2*2P~2x50P
塑胶高 H:1.0/1.5mm
排 数:双排、
折弯类型:180度/90度/SMT
材 质:PA6T/PA9T/LCP
详细介绍
![](/image/pdf.png)
![](/image/dowm.png)
Material:
Contact Material: Brass
Contact plating: Au or Sn Over30-50u" Ni
Insulator Material: Black Polyester UL94V-0
Standard: PA6T/PA9T/LCP+30%G.F
Electrical:
Current rating: 1.0Amps/contact max.
Contact resistance: ≤20mΩ/contact
Insulation resistance: ≥500MΩ at V=100V
Withstanding Voltage: 300V AC/minute
Mechanical:
Operaing temperature: -40°C to +105°C
Wave soldering temperature: 255±5°C,10s
